類型：TFT豎屏

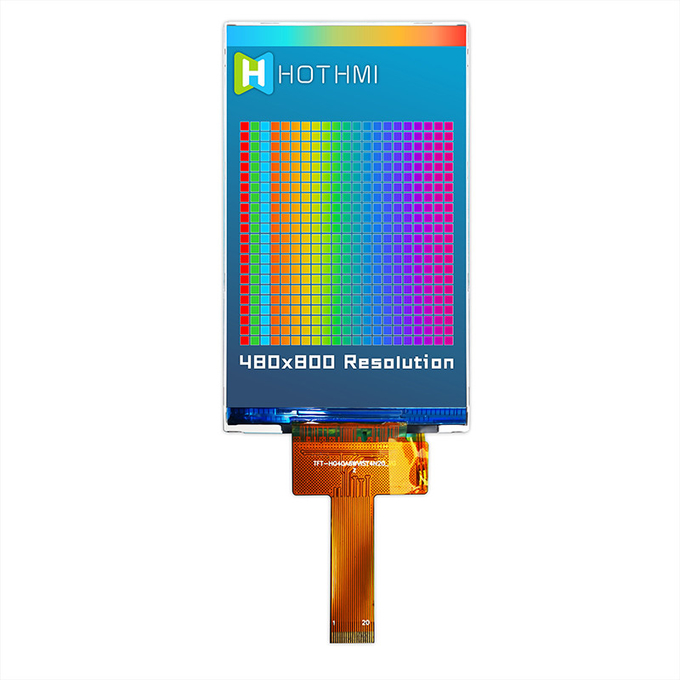

顯示像素：480x800

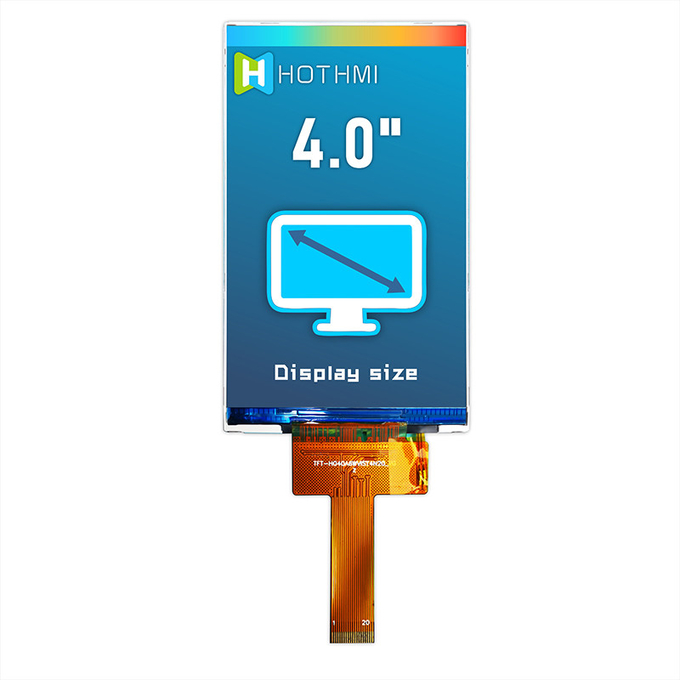

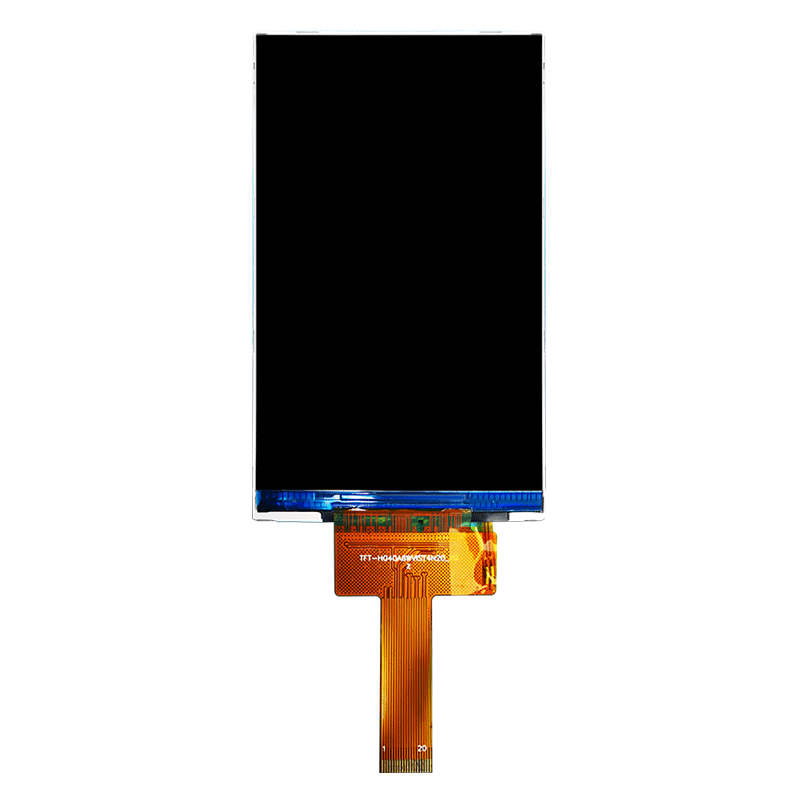

外形尺寸 ：57.14x96.85x2.1
VA尺寸：4.0
AA尺寸 ：4.0
有效尺寸mm：51.84x86.4
應用：手持設備

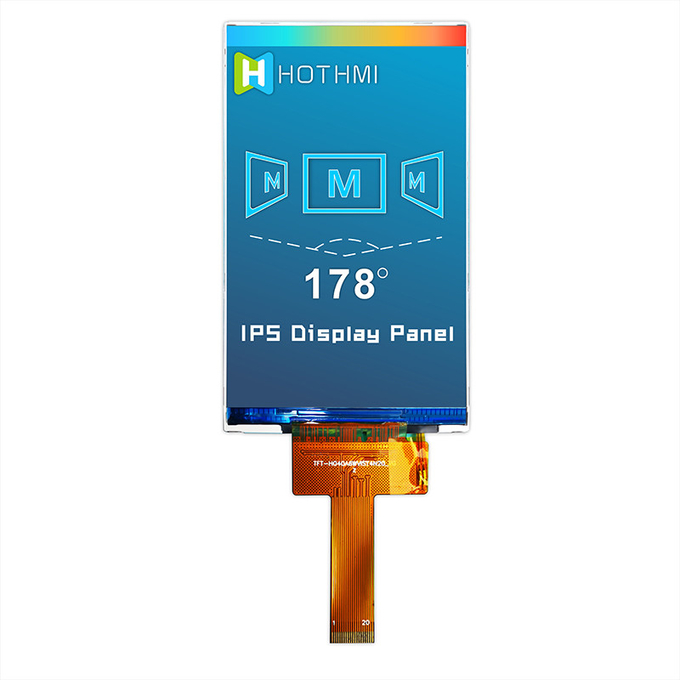

視角：全視角

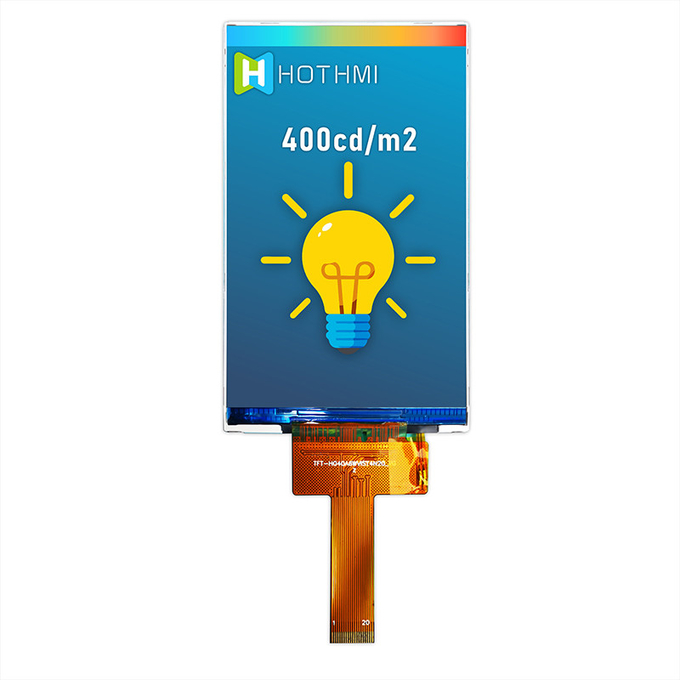

背光/亮度：400cd/m2
引腳：20PIN

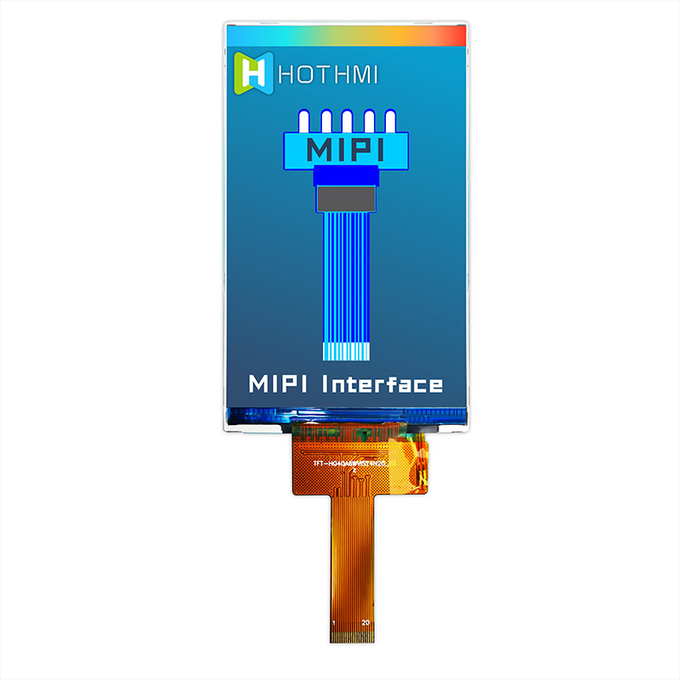

接口方式：MIPI

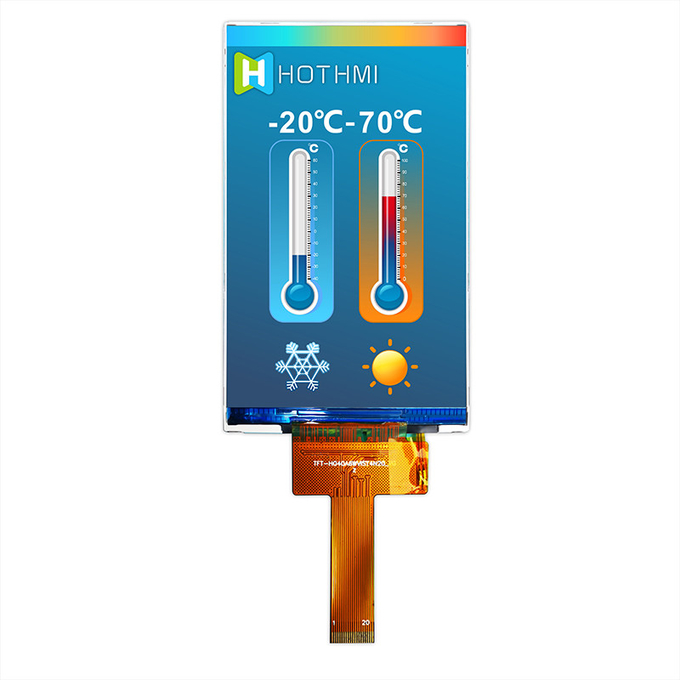

工作溫度：-20~70℃
供電電壓：3.3V

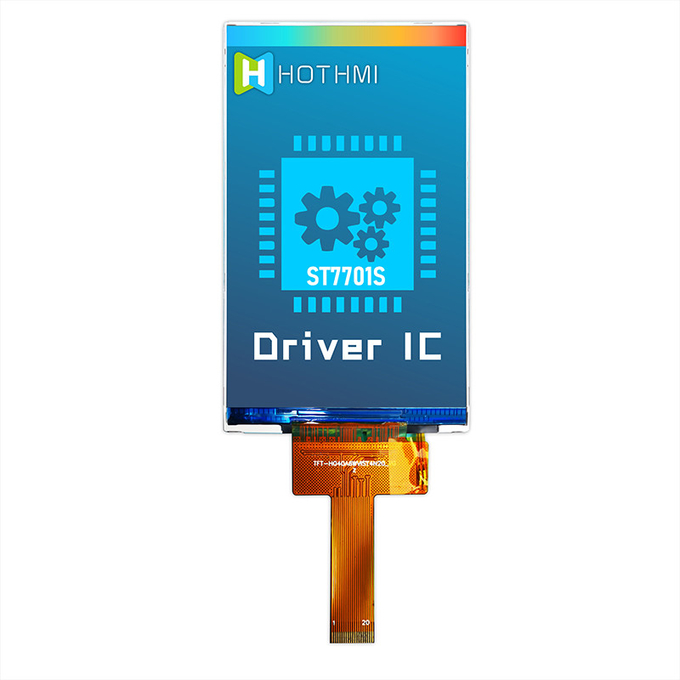

驅動芯片：ST7701S

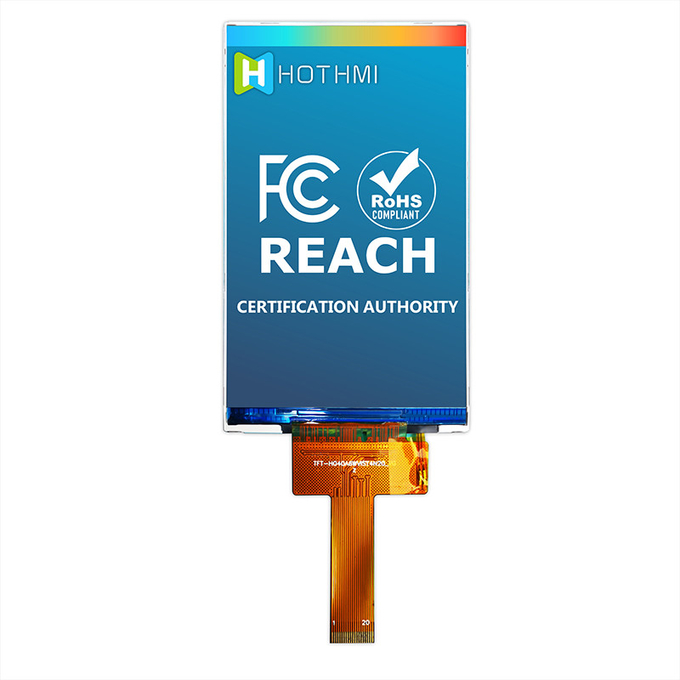

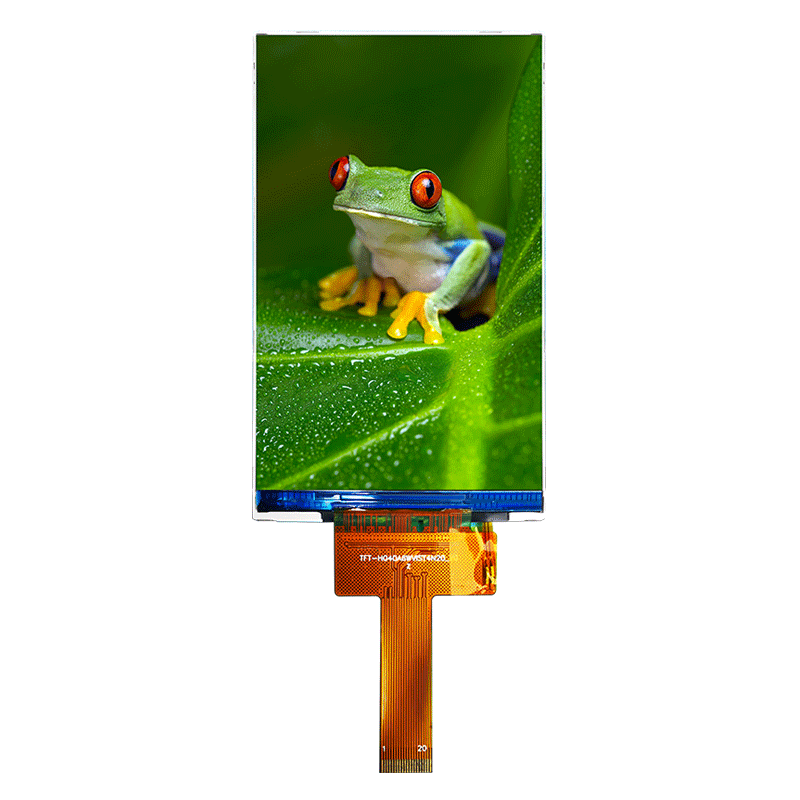

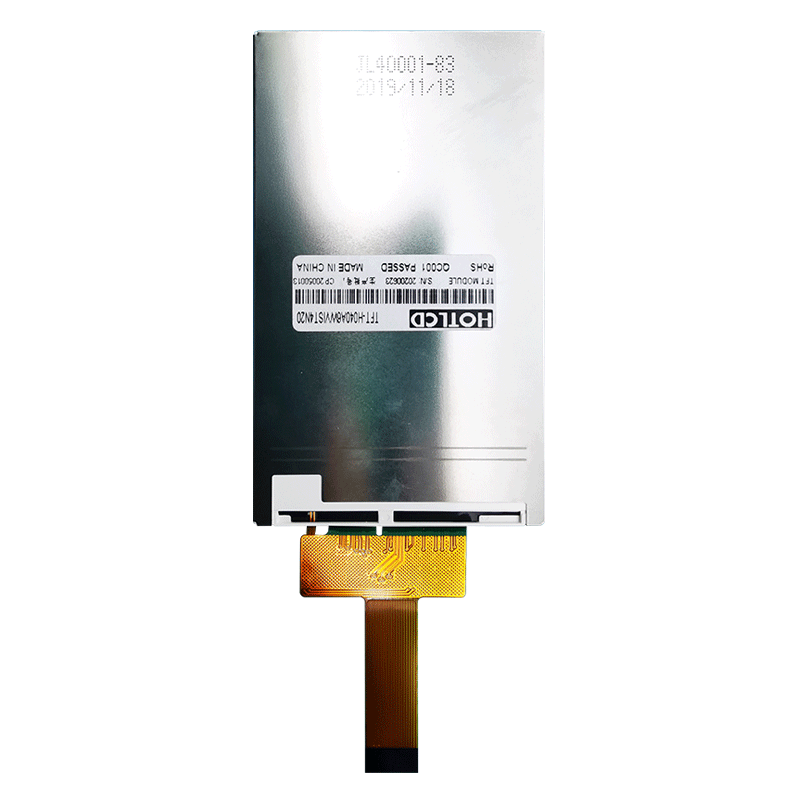

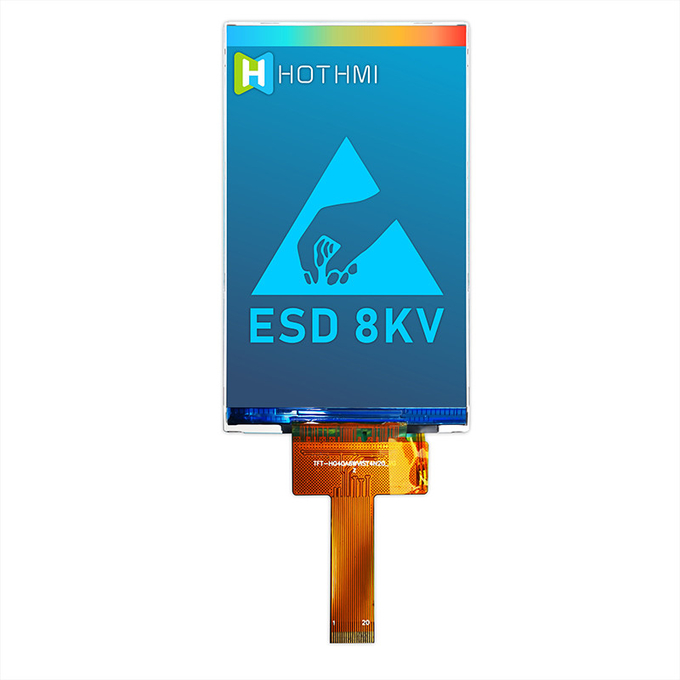

4.0寸TFT/4.0寸TFT彩屏|480*800分辨率|IPS全視角|MIPI接口TFT-H040A6WVIST4N20
4.0寸480x800 IPS MIPI TFT模組/TFT-H040A6W VIST4N20
TFT-H040A6WVIST4N20 | 4.0" IPS LCD | 480x800px 屏幕 | 無觸摸屏
TFT-H040A6WVIST4N20 | 4.0" IPS LCD | 480x800px 屏幕 | 無觸摸屏 | TFT-H040A6WVIST4N20
這款 4.0" 顯示屏是 480x800 分辨率的 IPS TFT。LCD 屏幕采用 IPS 技術，可提供增強的色彩再現、更好的圖像一致性、高亮度背光的陽光下可讀性，并在任何角度都具有卓越的光學特性。這種 24 位真彩色 液晶顯示器還包括更好的 FPC 設計，電纜上有 EMI 屏蔽。它還有一個內置的 ST7701S IC 驅動器，并提供與 TN 顯示器相同的機械足跡和引出線。該 TFT 符合 RoHS 標準
General Feature
Item | Standard Value | Unit | ||
Display Size | 4.0 | Inch | ||
Number of Pixels | 480(H)*3(RGB)* 800(V) | dots | ||
Active Area | 51.84x86.4mm | mm | ||

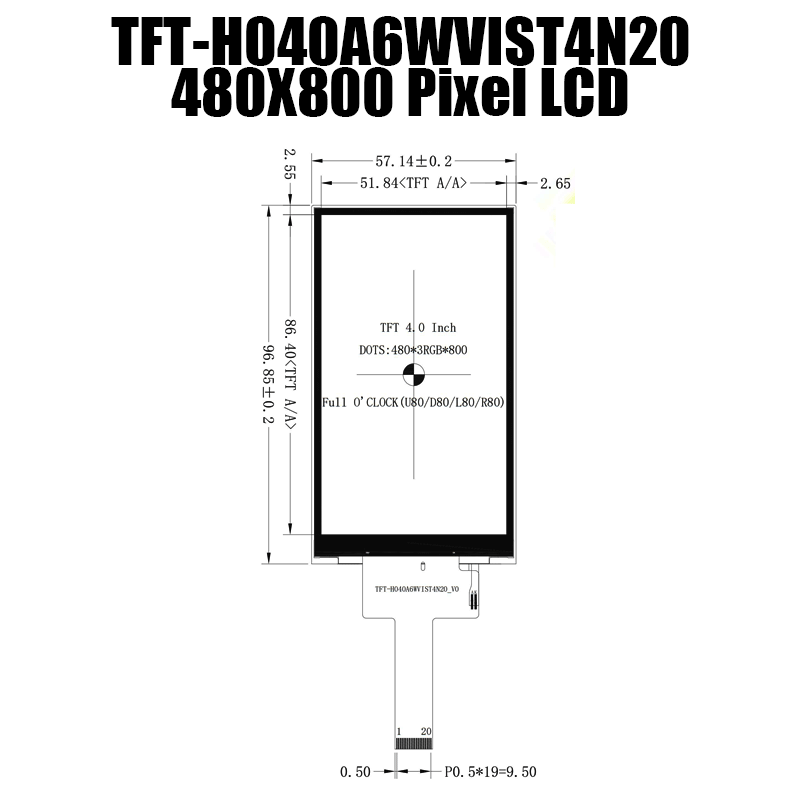

Outline Dimension | 57.14x96.85x2.1mm | mm | ||
Viewing Direction | FULL O'clock | - | ||
Interface | MIPI | - | ||
Driver IC | ST7701S | - | ||
Driver Condition | VCI=2.8V(Typ) | V | ||
Backlight | - | - | ||
Touch Panel | WHITOUT TOUCH | |||
CTP Driver IC | - | - | ||
Driver Condition | VDD=2.8V | V | ||
TFT Operation AT | -20 ～ +70 | ℃ | ||
TFT Storage AT | -30 ～ +85 | ℃ | ||
TFT Pin Description
| Pin NO. | Symbol | Description | ||
| 1 | NC | Not Connect | ||
| 2 | LEDK | LED Cathode | ||
| 3 | NC | Not Connect | ||
| 4 | LEDA | LED Anode | ||
| 5 | NC | Not Connect | ||
| 6 | VCI | Digital Power | ||
| 7 | IOVCC | IO Supply Voltage | ||
| 8 | NC | Not Connect | ||
| 9 | RESX | Global Reset Signal. Active Low. | ||
| 10 | GND | Ground | ||
| 11 | D1P | |||
| 12 | D1N | MIPI-DSI data Lane 1 negative-end input/output pin. | ||
| 13 | GND | Ground | ||
| 14 | DCKP | MIPI-DSI clock Lane positive-end input pin. | ||
| 15 | DCKN | MIPI-DSI clock Lane negative-end input pin. | ||
| 16 | GND | Ground | ||
| 17 | D0P | |||
| 18 | D0N | MIPI-DSI data Lane 0 negative-end input/output pin. | ||
| 19~20 | GND | Ground | ||
