With the wide application of human-machine interface, the display content is gradually rich and colorful, and there are higher requirements for display definition, viewing angle range width and working temperature. The common TFT viewing angle range of 50° on the market and the operating temperature of -20 to +70 °C can no longer meet the needs of users. Therefore, Xin Hongtai Company has launched a series of wide-view TFT display screens, which can reach the viewing angle of 80° or more in both the up, down, left and right directions, and the HD perfect quality display with almost full viewing angle. Most wide viewing angle TFT displays The operating temperature is also increased to -30~+80°C.
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Effective size mm |
Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

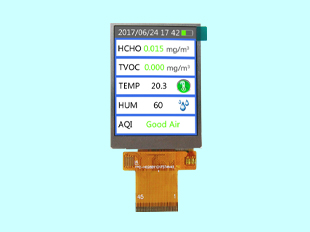

| 2.8 inch TFT | QVGA 240*320 | MCU interface| TFT-H028B9QVTST3N40 | TFT LCD | 240x320 |
|
50.00x69.20x2.5 | 2.8 | 2.8 | 43.20x57.60 | 12 O'Clock | 350cd/m2 | 40pin | MCU | 16BIT | -20~70 | 2.8V | ST7789V | |
| 2.8 inch TFT | QVGA 240*320 | MIPI interface| TFT-H028A4QVTST3C20 | TFT LCD | 240x320 |
|
50.00x69.20x3.7 | 2.8 | 2.8 | 43.20x57.60 | 12 O'Clock | 300cd/m2 | 20pin | MIPI | Contains CTP | -20~70 | 2.8V | JD9852 | |
| 2.8 inch TFT | VGA 480*640 | IPS | MIPI interface| TFT-H028A10VGIST6N20 | TFT LCD | 480x640 |
|
46.20x65.18x2.3 | 2.8 | 2.8 | 43.20x57.60 | Full View | 600cd/m2 | 20pin | MIPI | Anti-static ESD 8KV | -20~70 | 2.8V | ST7701S | |
| 5.0 inch TFT | 480*854 | IPS | MCU interface| TFT-H050A4FWINT4N40 | TFT LCD | 480x854 |
|
64.7x118.8x2.05 | 5.0 | 5.0 | 61.56x109.42 | Full View | 450cd/m2 | 40pin | MCU | 16BIT | -20~70℃ | 3.3V | NT35510S | |

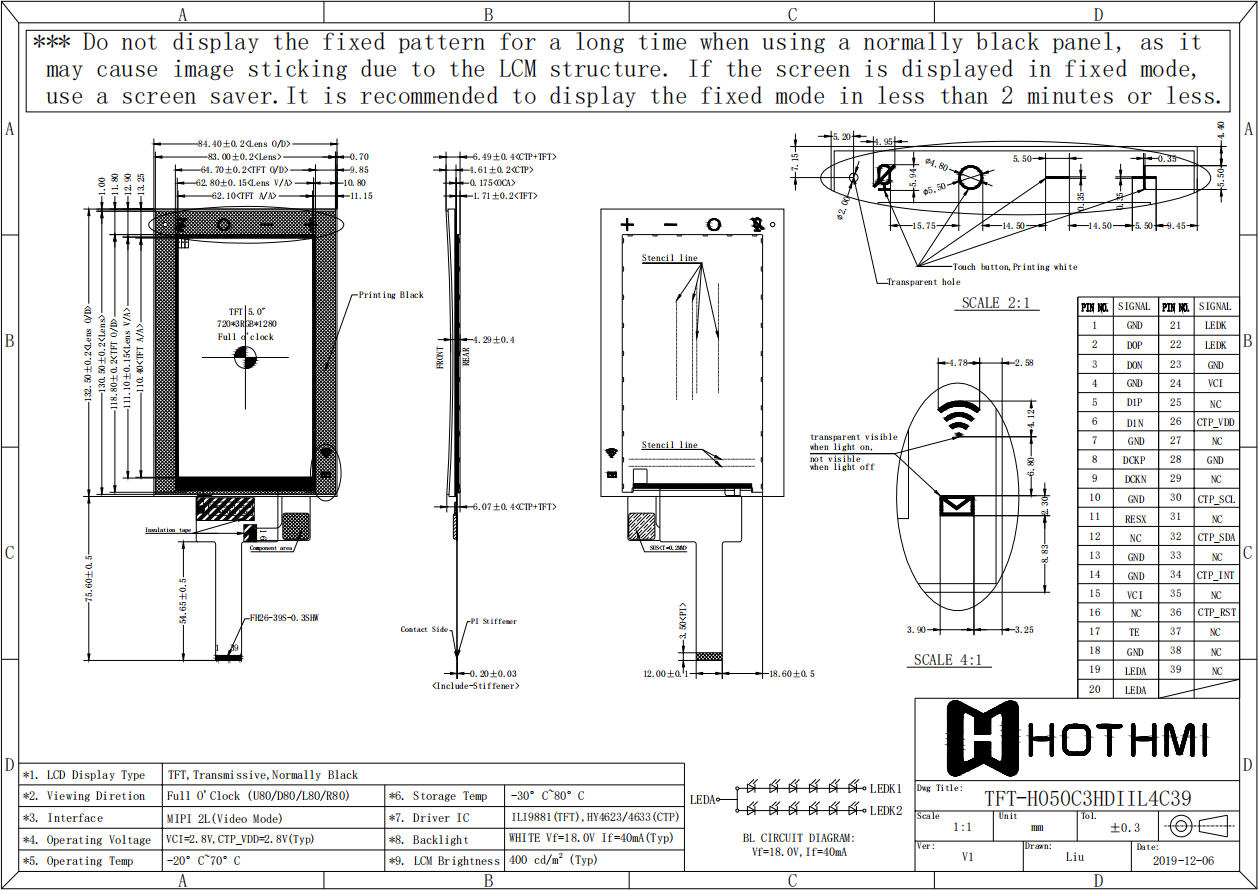

| 5.0 inch TFT | HD 720*1280 | IPS | MIPI interface| TFT-H050C3HDIIL4C39 | TFT | 720x1280 |
|
64.7x118.8x1.71 | 5.0 | 5.0 | 62.10x110.4 | Full view | 400cd/m2 | 34pin | MIPI | Anti-static ESD 8KV | -20~70℃ | 5.0V | I,I9881 | |

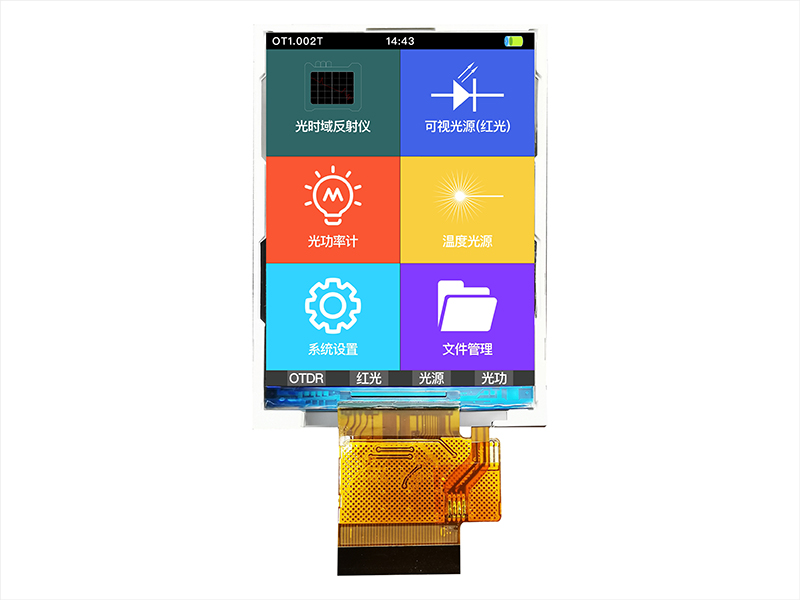

| 3.5 inch TFT /640x480 resoliution/Full view/MIPI interface/Industrial grade/TFT-H035A8VGIST6N30 | TFT LCD | 640x480 |
|
74.5x62.4x2.37 | 3.5 | 3.5 | 74.5x62.4x2.37 | Full View | 650cd/m2 | FPC-30PIN | MIPI | Anti-static ESD 8KV | -20~70℃ | 2.8v | ST7703 | |
| 3.0 inch TFT | 360 * 480 resolution | MIPI interface| IPS | TFT- H030A5NHIST4N20 | TFT LCD | 360x480 |
|
42.7x74.4x2.2 | 3.0 | 3.0 | 36.72x65.28 | Full View | 450cd/m2 | 20pin | MIPI | Anti-static ESD 8KV | -30~80℃ | 3.3V | ST7701S | |

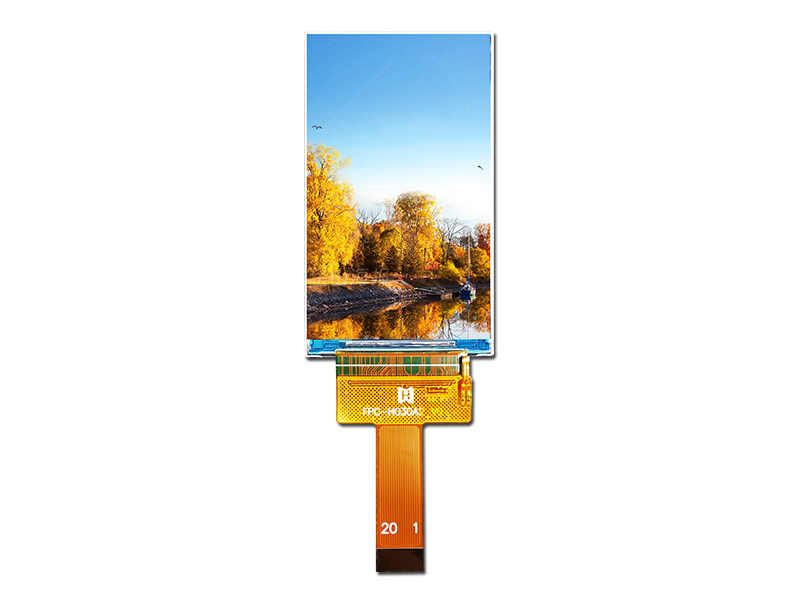

| Sports DV camera LCD 3.0 inch TFT | 480 * 854 resolution | IPS | MIPI TFT- H030A2FWIST2N20 | TFT | 480x854 |
|
41.8x73.97x2.15 | 3.0 | 3.0 | 36.72x65.28 | Full View | 200cd/m2 | 20pin | MIPI | -20~70℃ | 3.3V | ST7701S | ||
| 2.4 inch TFT /Detector LCD screen/240*320 resoliution/full view/MIPI Interface/TFT-H024B12QVIFT8N15 | TFT | 240x320 |
|
42.52x59.86x2.20 | 2.4 | 2.4 | 36.72x48.96 | Full View | 800cd/m2 | FPC-15PIN | MIPI | Anti-static ESD 8KV | -20~70℃ | 3.3V | JD9852 | |
| 2.8 inch TFT /240*320 resoliution/12H/MCU Interface/TFT-H028B11QVTST4N45 | TFT Vertical screen | 240x320 |
|
50.00x69.45x2.60 | 2.8 | 2.8 | 43.20x57.60 | 12H | 400cd/m2 | FPC-45PIN | MCU | 8080 MCU 8/16 Bit | -20~70℃ | 3.3V | ST7789V |
