COG display: not only thin, but also low power consumption.
COG display is the first batch of Xinhongtai HOTLCD since its successful development and production in 2004. It has been the main product of the company for 15 years and is also a kind of LCD module favored by many customers.
So far, hundreds of standard COG displays ranging from 64*48 dot matrix to 320*240 dot matrix have been developed for customers to choose. In particular, there are more than one hundred different sizes of 128*64 dot matrix.
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Point spacing mm |
Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

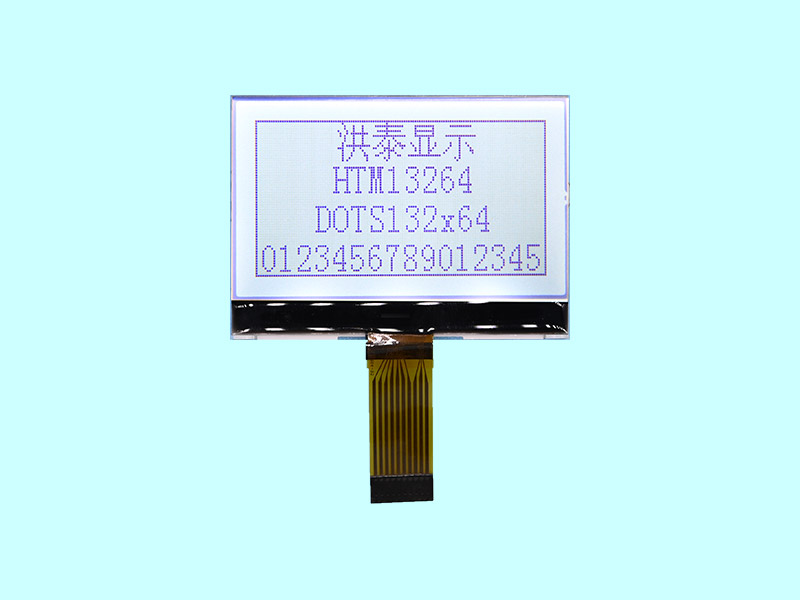

| HTG13264C01A-SPI | 132x64 |
|
57.5x41.7x4.3 | 54.0x30.2 | 48.81x26.21 | 6H | 白光 | FPC-10PIN | SPI | -20~70℃ | 3.3v | ST7567 | ||||
| HTG12864I01A-SPI | COG | 128x64 |
|
71.3x52.2x5.3 | 65.5x38.0 | 60.77x32.93 | 6H | 白光 | FPC-10PIN | SPI | -20~70℃ | 3.3v | ST7567 | |||
| HTG12864C01A-SPI | COG | 128x64 |
|
40.8x33.1x4.15 | 36.0x23.5 | 33.25x20.45 | 6H | 白光 | FPC-10PIN | SPI | -20~70℃ | 3.3v | ST7567 | |||
| 12864 COG dot matrix LCD screen/flow meter display screen/low power consumption/visible in sunlight/HTG12864-93 | COG | 128x64 |
|
57.5x41.7x4.3 | 54.0x31.0 | 47.33x26.21 | 0.79x0.71 | 6H | white light | FPC-28PIN | MCU | -20~70℃ | 3.3V | ST7567 | ||
| 128x32 COG dot matrix LCD screen/Internet phone display screen/HTG12832F-5 | COG | 128x32 |
|
63.0x27.5x2.0 | 59.0x17.5 | 56.033x14.526 | 0.438x0.455 | 12H | white light | MCU | -20~70℃ | 3.3V | ST7565R | |||
| 240160 COG dot matrix LCD screen/smart oil and gas, oilfield instrumentation display screen/low power consumption/self-contained booster circuit/HTG240160N | COG | 240x160 |
|
79.82x63.40x4.20 | 73.42x48.0 | 67.42x44.94 | 0.261x0.261 | 6H | white light | FPC-20PIN | MCU | Low power consumption, built-in boost voltage | -20~70℃ | 3.3V | ST7529 | |

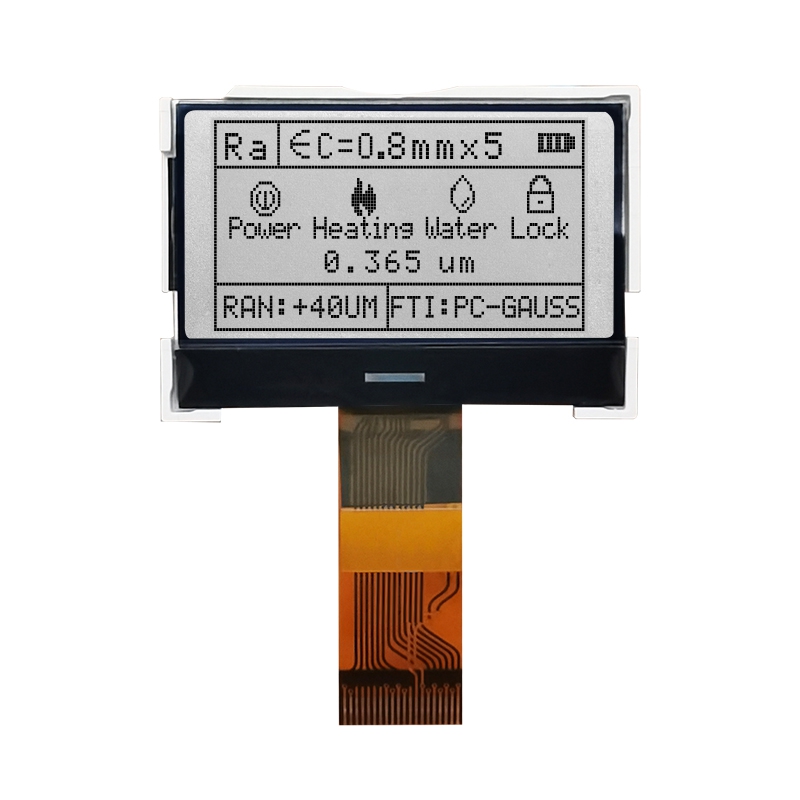

| 128*64 COG dot matrix LCD screen/surface roughness detector/HTG12864-119 | COG | 128x64 |
|
39.00x27.00x3.49 | 32.61x17.57 | 30.05x15.01 | 0.23x0.26 | 6H | white | FPC-20PIN | SPI | -20~70℃ | 3.3V | ST7567 | ||

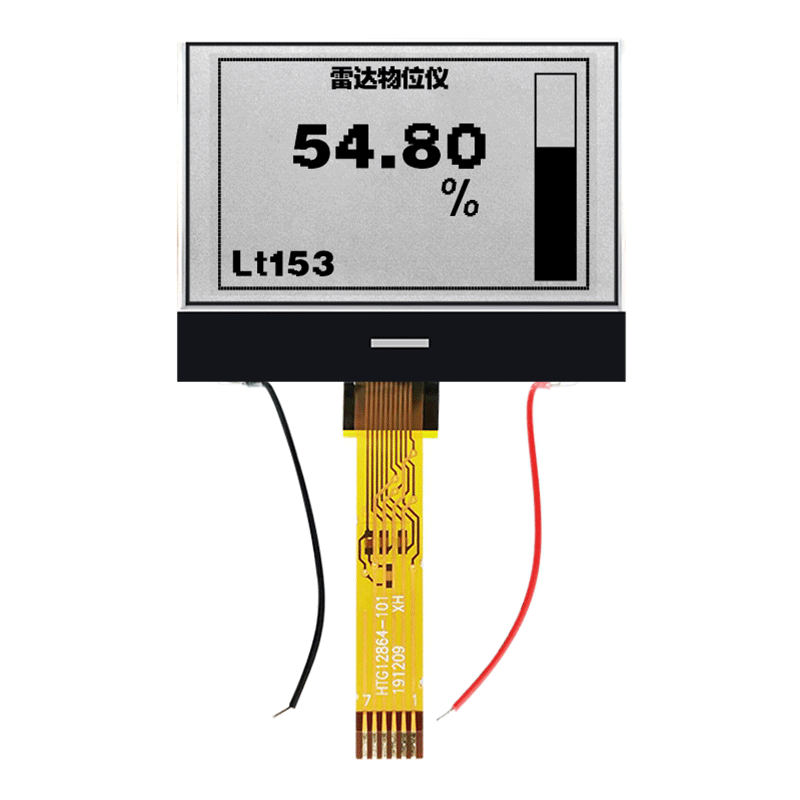

| 12864COG dot matrix LCD screen|HTG12864-101 | COG | 128x64 |
|
48.0x36.0x3.8 | 44.0x25.0 | 39.66x19.82 | 0.31x0.31 | 6H | 白光 | FPC-6PIN | I2C | For other flow instruments such as radar level meter | 3.0V | 3.0V | UC1601S | |

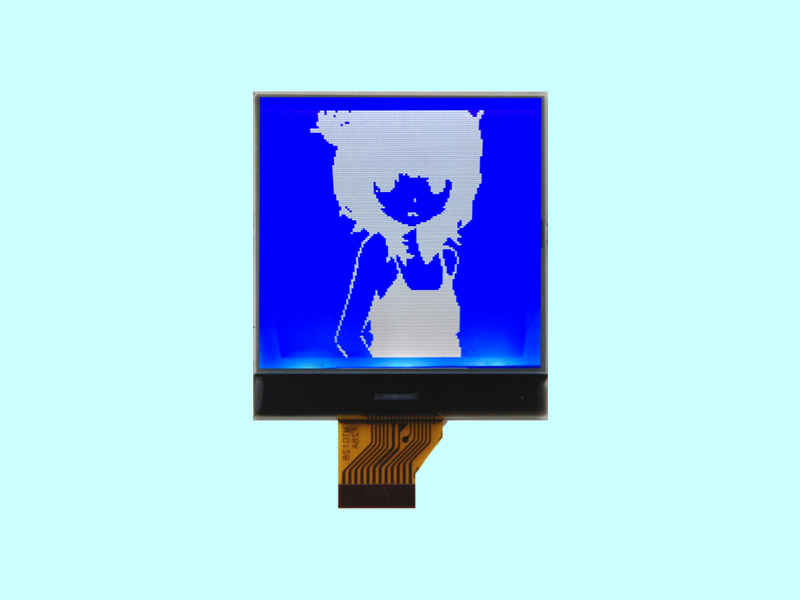

| 128x128 COG LCD Graphic/HTG128128A | COG | 128x128 |
|
55.0x49.0x2.8 | 46.0x44.5 | 40.935x38.375 | 0.295x0.275 | 6H | WHITE | FPC-12PIN | SPI | Anti-static ESD 8KV | -20~70℃ | 3.0v | UC1617S | |
| 128x64 COG LCD Graphic/HTG12864K1-K | COG | 128x64 |
|
89.8x54.6x7.0 | 70.7x38.8 | 66.52x33.24 | 0.52x0.52 | 6H | GREEN | FPC-30PIN | MCU | Anti-static ESD 8KV | -20~70℃ | 3.3v | ST7565R |
