Product type：TFT LCD
Show contents：640x480
Outline size(mm) ：76.90x63.90x3.1
Size of View Window(mm)：3.5
Display size(mm) ：3.5
Effective size(mm)：70.08x52.56
Product application：手持設備，游戲機
Visual angle：Full view
Backlight type or brightness：450cd/m2
Connection PIN Number：FPC-30PIN
Interface mode：MIPI
Special instructions：Anti-static ESD 8KV
Working temperature：-30~80℃
Power supply voltage：3.3V
Driver chip model：ST7703

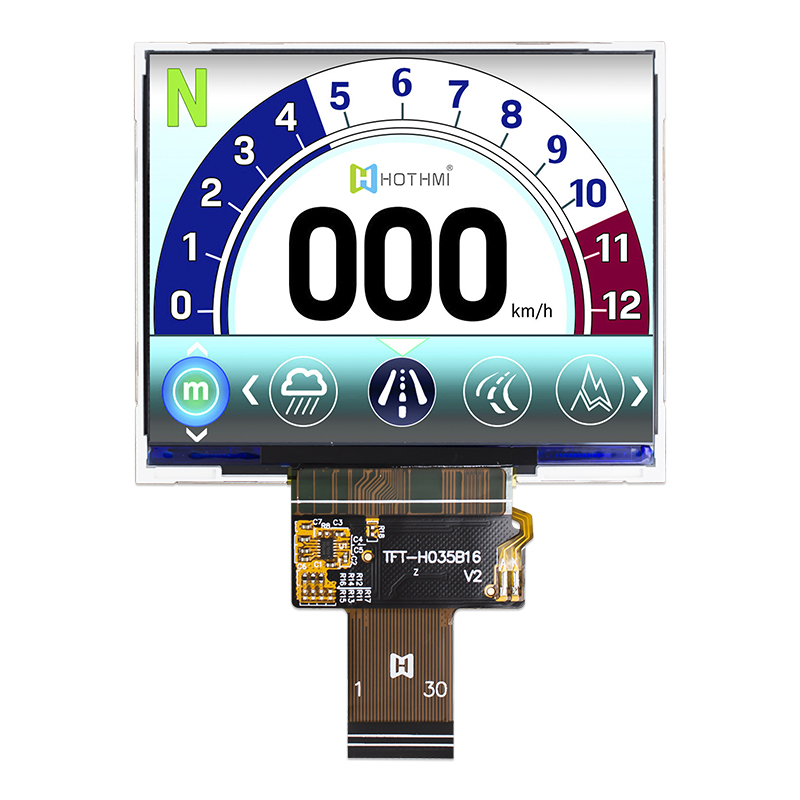

TFT-H035B16VGIST4G30 | 3.5" IPS LCD | 640x480px high resolution screen | MIPI interface | Optional resistive/capacitive touch screen/customized cover
This 3.5-inch IPS TFT display features a high resolution of 640x480 pixels and has built-in EMI shielding. The TFT features a MIPI interface, which provides the additional benefits of high-speed data transfer rates, lower EMI, and reduced wiring complexity. Brightness level is 450cd/m2. Thanks to the IPS technology built into this LCD monitor, the monitor offers stunning clarity, superior color reproduction, better image consistency, and high contrast ratio across all viewing angles.
While this transmissive LCD boasts impressive quality and 3.3 V power supply, this TFT display is powered by a built-in ST7703 driver IC and is compatible with Raspberry Pi/SMT32, LINUX, Android platform, providing excellent performance and reliability. This driver optimizes the monitor's functionality, ensuring smooth operation and accurate rendering of images and graphics. The LCD and touch screen use FFC (Flexible Flat Cable) connections to ensure easy electrical connection. Our monitors are RoHS compliant and adhere to strict environmental and safety standards.
Customized Ribbon Cables/Flexible Printed Circuits (FPC): Tailor your cables to perfection by adjusting their length, position, and pin arrangements, or adding other connectors. Obtain a precisely designed cable solution to streamline and enhance the safety of your connections |
Touchscreen Add-On Components: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design. |
Interface Customization: Choose from various interface options or consult with our experts to select the options that best suit your project. We can integrate HI,USB, SPI, VGA, and other interfaces into your display to achieve your design goals. |
Cover Glass: Equip your display with custom-cut cover glass to improve durability. Choose from various thicknesses of cover glass and undergo optical bonding to prevent moisture and debris. |
