Product type：TFT LCD
Show contents：800x600
Outline size(mm) ：183x141x7.25
Size of View Window(mm)：8.0
Display size(mm) ：8.0
Point spacing(mm)：164.8x124.3
Effective size(mm)：162x121.5
Product application：Vehicle, medical, industrial control
Visual angle：Full view
Backlight type or brightness：280cd/m2
Connection PIN Number：50pin
Interface mode：TTL
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：3.3V
Driver chip model：HX8264+HX8696

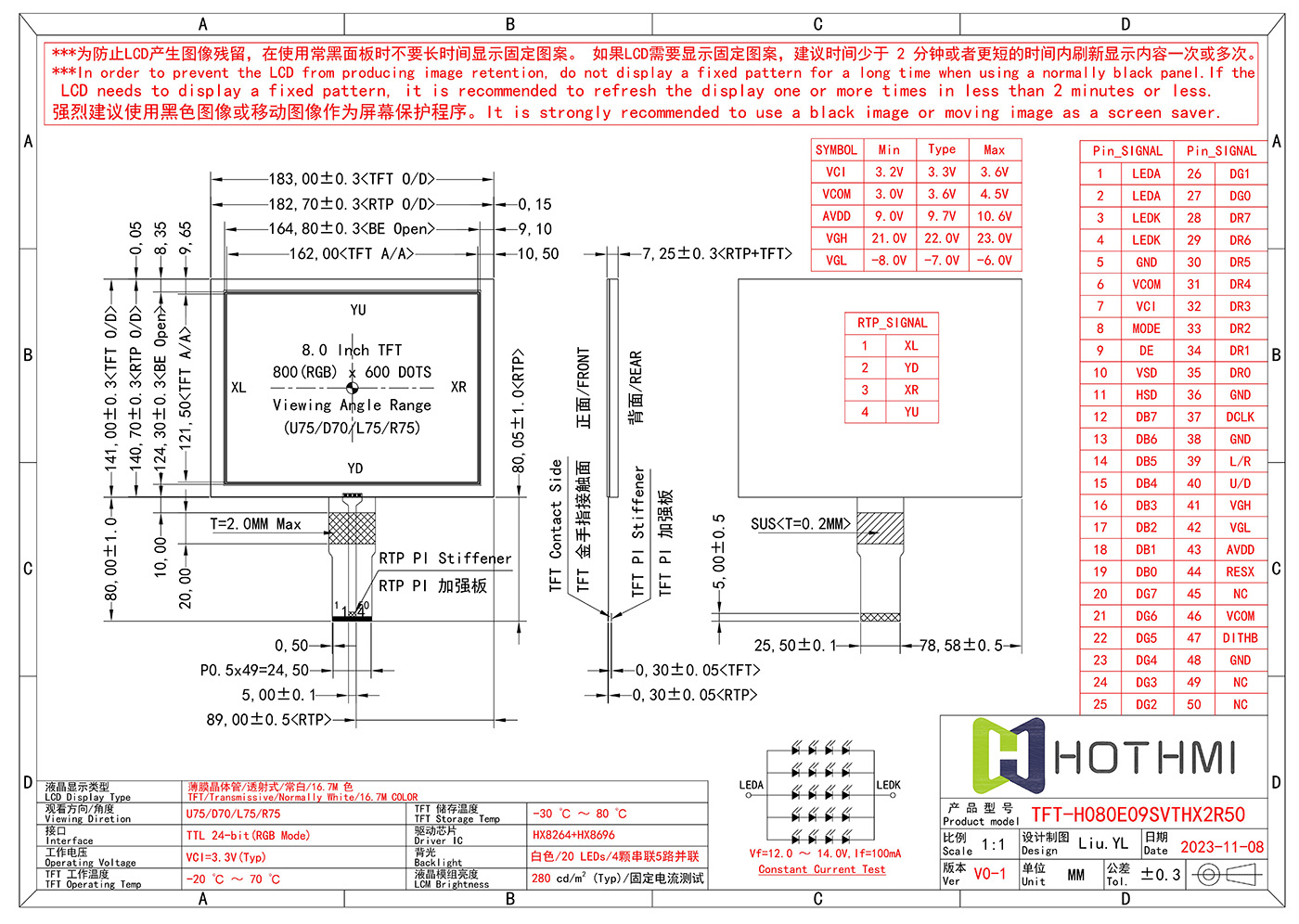

TFT-H080E09SVTHX2R50 | 8.0" IPS LCD | 800x600 pixel screen | EMI shielded | TTL connector | 50-pin FFC connection | Resistive touch screen
This 8.0-inch IPS TFT LCD display brings together advanced technologies to deliver superior visual output for high-end projects. It has 800x600 pixel resolution, adopts upgraded FPC design, and the cable is equipped with EMI shielding to ensure stable signal transmission. The 280 cd/m2 LED backlight makes it perform well in a variety of environments.
Built-in IPS technology provides users with stunning clarity, superior color reproduction and high contrast from all viewing angles. Not only that, this LCD monitor introduces a 4-wire resistive touch panel, adding simple touch functionality to high-end projects and making user interaction more intuitive.
In terms of connection, it supports 24-bit TTL interface and is easily integrated and compatible with various Arduino models. Using 50-pin FFC flexible flat cable connection method, electrical connection is more convenient.
Powered by built-in HX8264+HX8696 driver IC, ensuring excellent performance and reliability. Optimized drivers ensure smooth monitor operation and accurate rendering of images and graphics.
Compliant with RoHS standards and strictly adhering to environmental and safety standards, it is a powerful, simple and practical high-end monitor.
