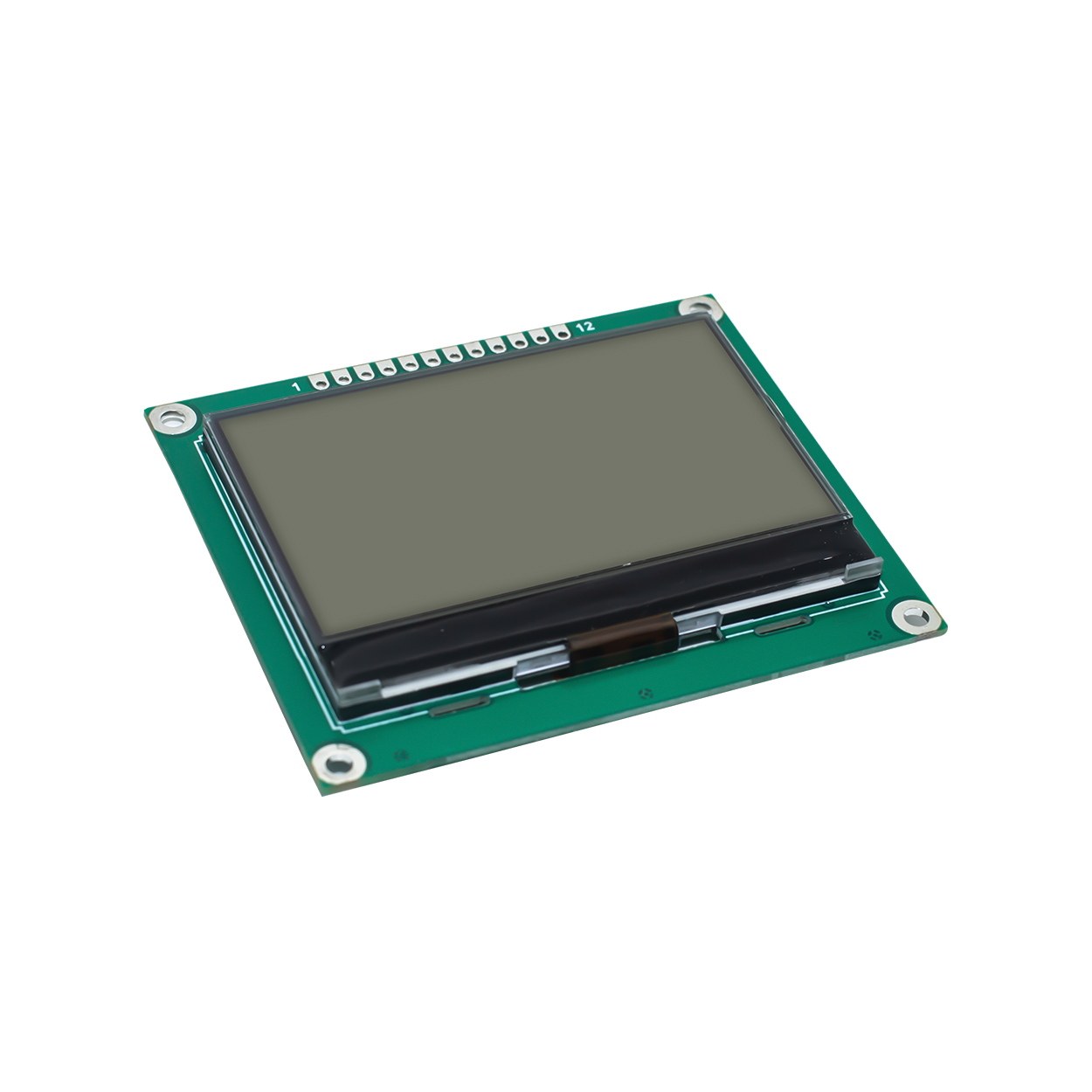

Product type：Graphic LCD Module
Show contents：132x64
Outline size(mm) ：66.0x56.2x5.5
Size of View Window(mm)：53.2x31.5
Display size(mm) ：48.81x26.21
Point spacing(mm)：0.41x0.37
Product application：Instruments
Visual angle：6H
Interface mode：SPI
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：+3.3V
Driver chip model：ST7567

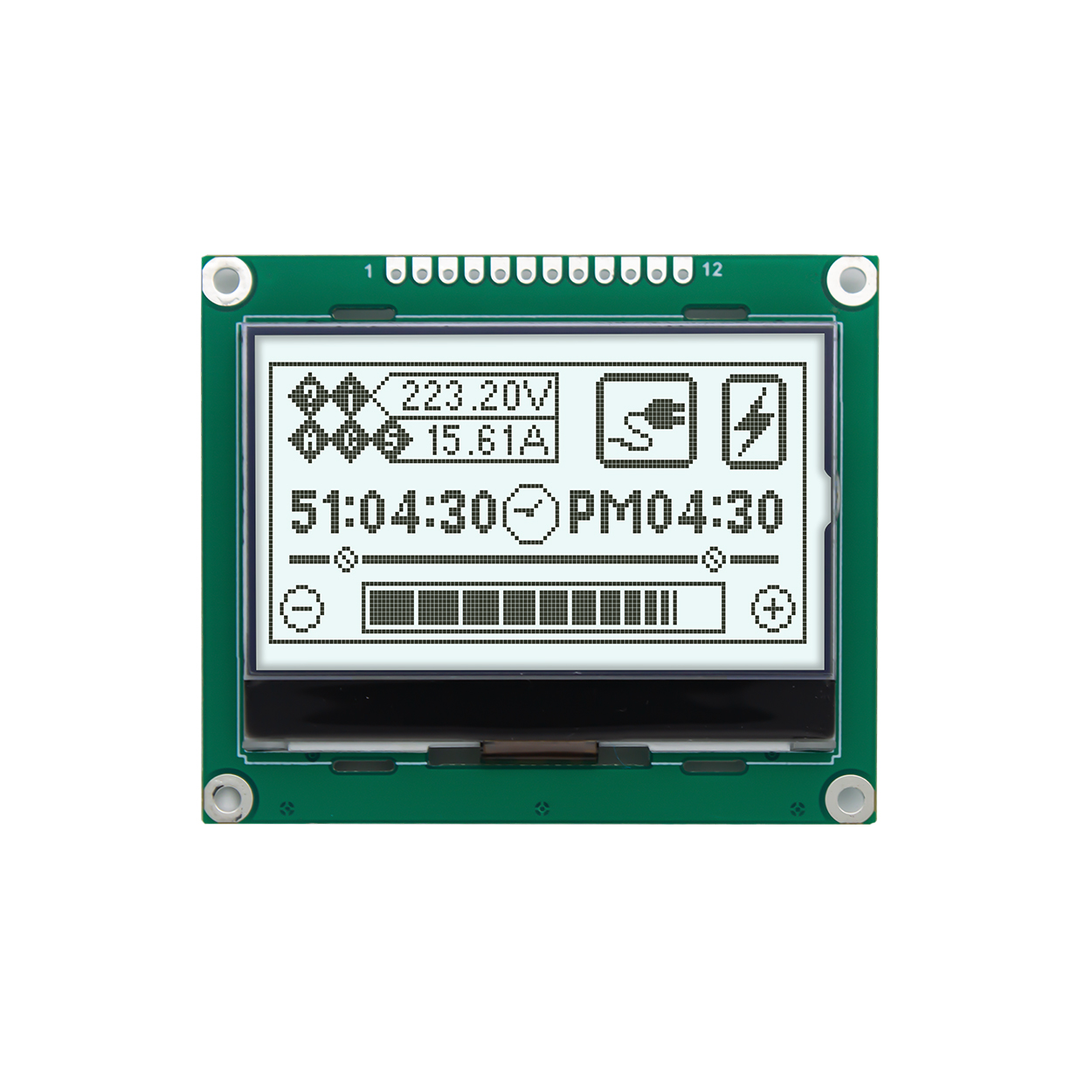

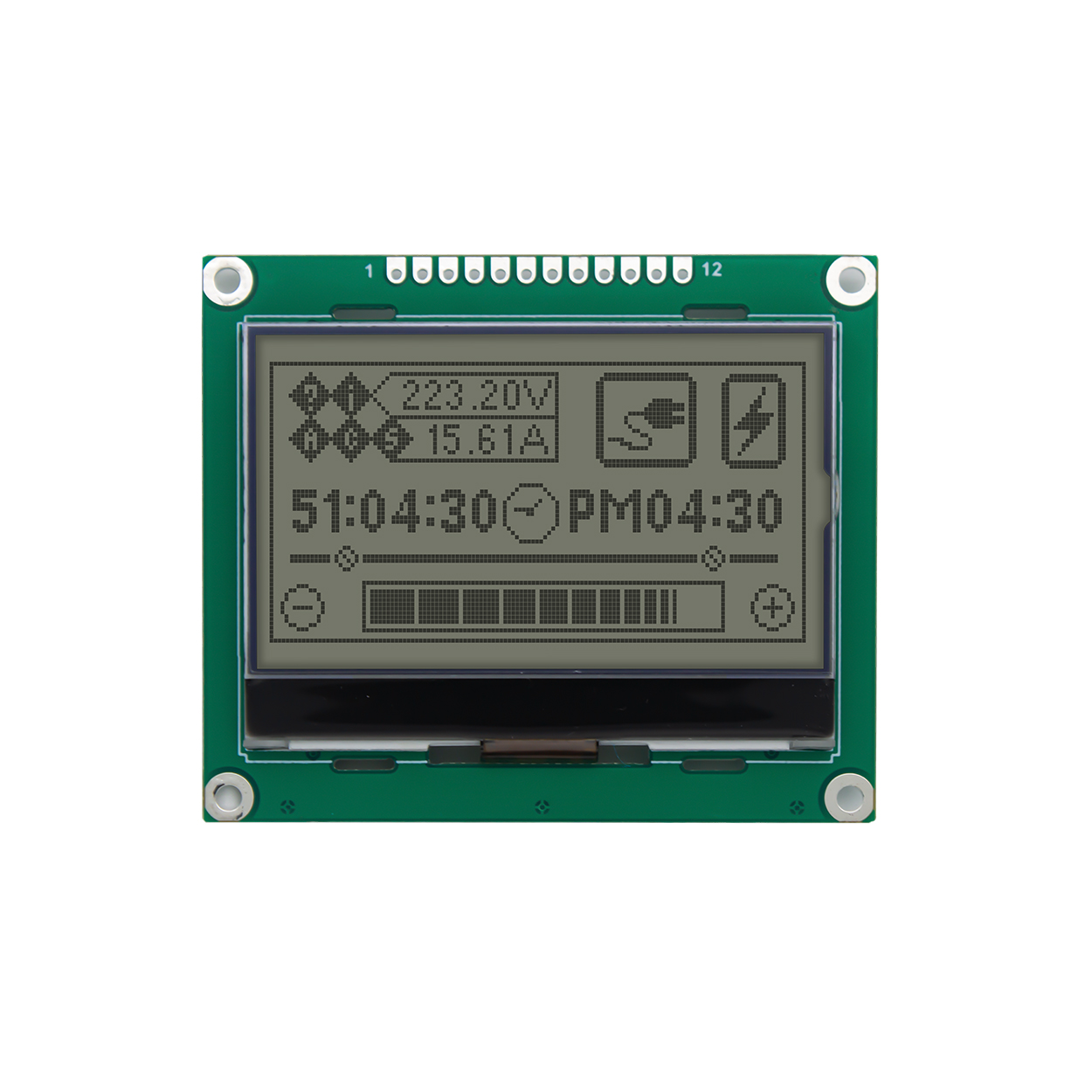

This Graphic LCD Module 132x64 Graphic LCD Display Module displays dark gray pixels on a white background. This translucent LCD display is engineered to provide optimal visibility in a variety of lighting conditions in many different environments. In bright sunlight, the display uses its reflectivity to reflect the image back to the viewer, making the screen easy to read. In darker environments, the LCD has a strong backlight built in to provide high contrast and display clear graphics to the viewer. This advanced display technology ensures that the display is always easy to read regardless of the lighting conditions.
This Graphic LCD Display Module is created with a built-in negative voltage and comes with a built-in ST7567 controller. It is also fully compatible with Arduino/ C8051 and can be seamlessly connected with other electronic systems for a variety of applications. This product model is designed to withstand harsh operating conditions and operates abnormally when used in a temperature range of -20 to 70 degrees Celsius. The LCD has an optimal viewing angle of 6:00, operates at 3.3V, and is RoHS compliant.
