8.0" TFT LCD Display Modules | 1024x768 HI TFT Modules

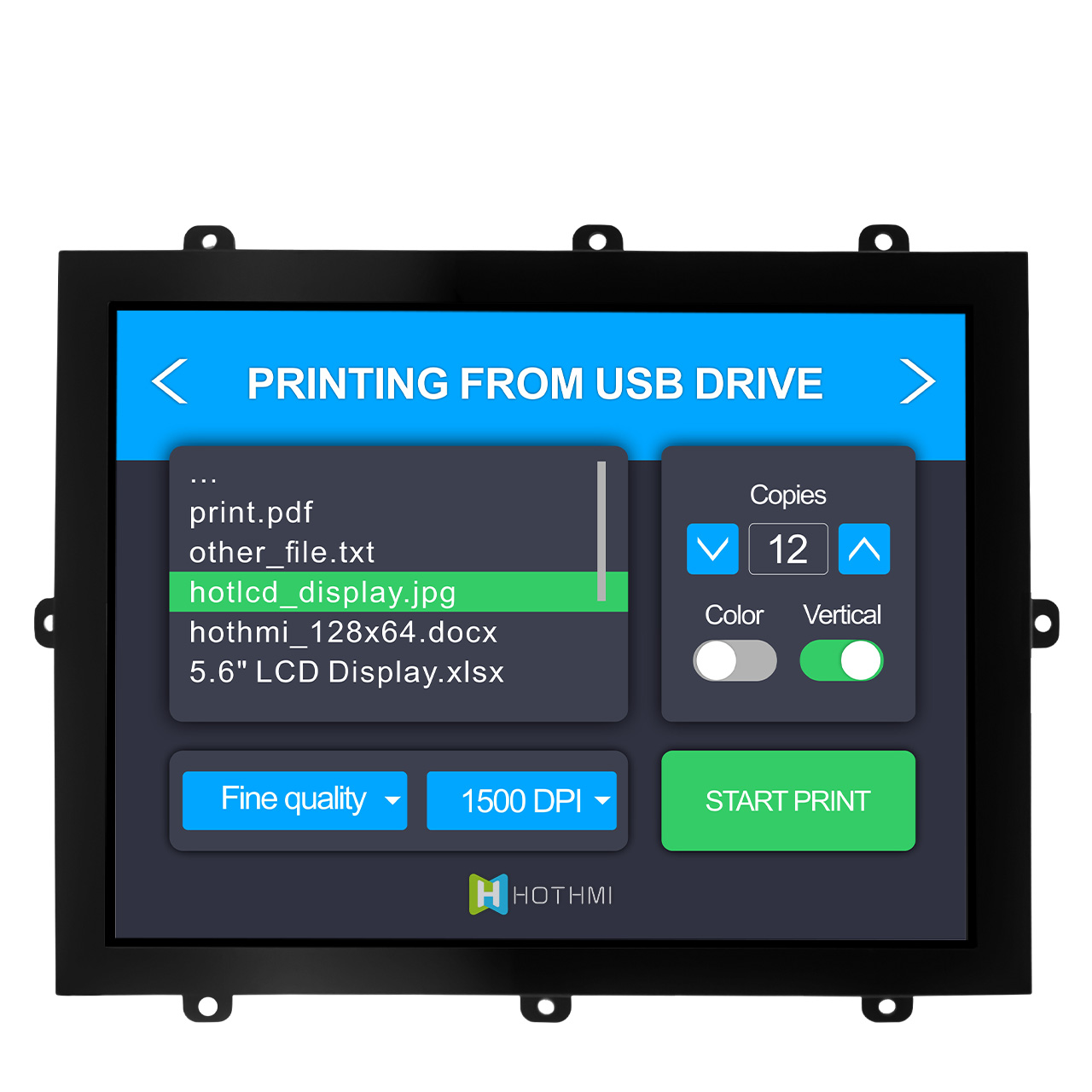

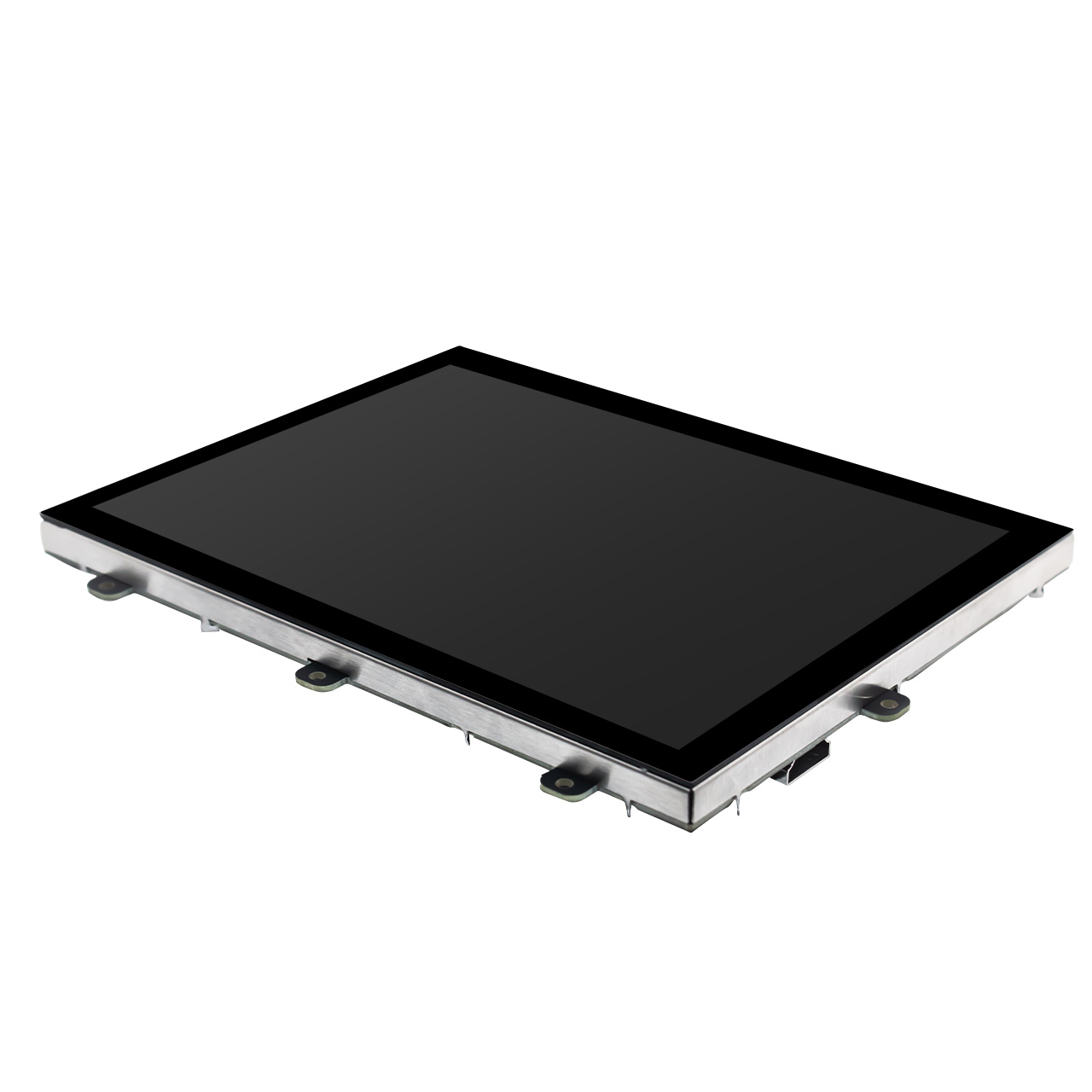

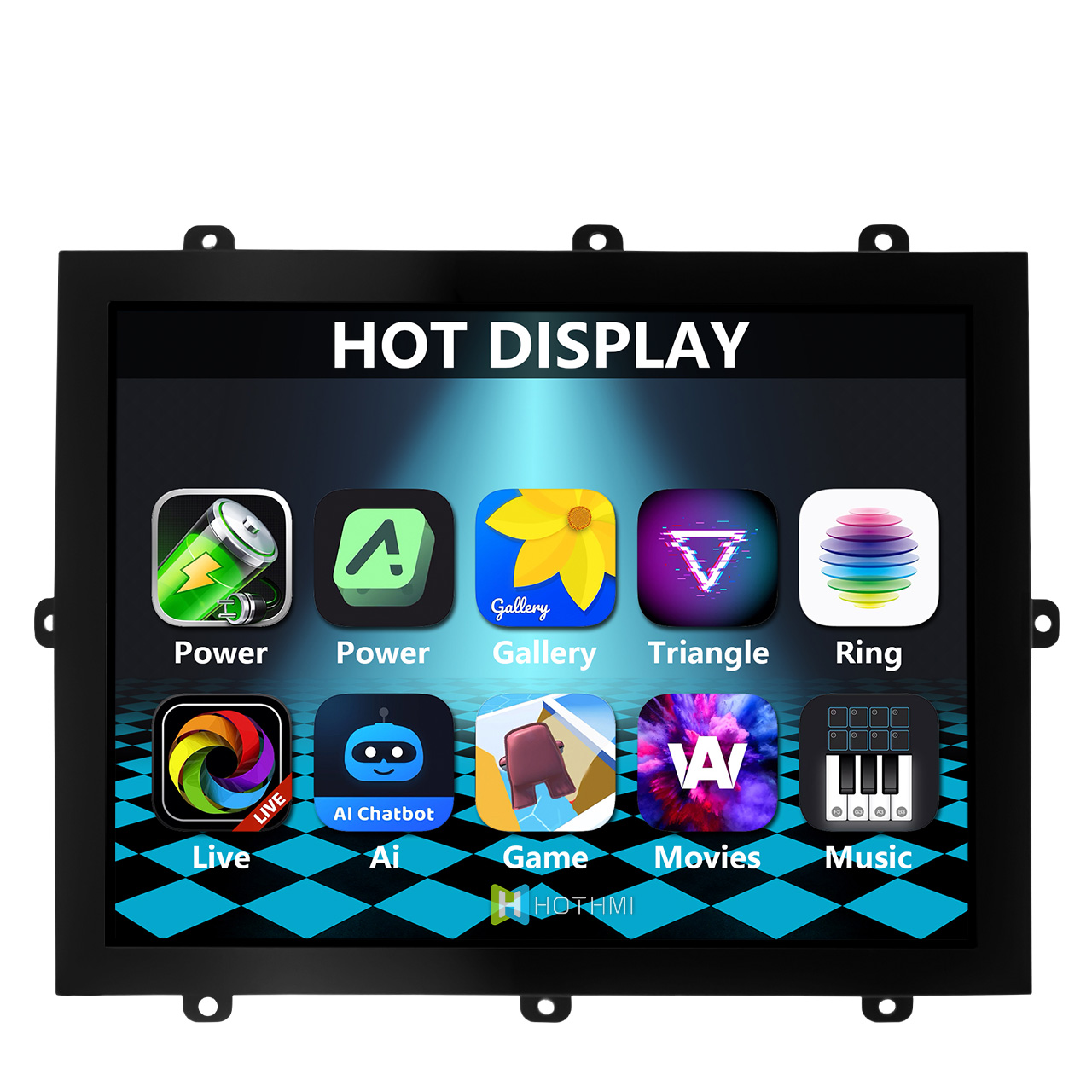

8.0" TFT LCD Display Modules HTM-H080D13-HI-A01G is  a display with normally black panel design, a resolution of 1024 (RGB) × 768 pixels, supports NTSC 60% color gamut, and a brightness of 300 cd/m2. The module operates at a +12V (typical value) voltage, and the recommended power supply current is no less than 1A. It can operate stably at an ambient temperature of -20℃ to +70℃, and the storage temperature range covers -30℃ to +80℃. The product is equipped with a white backlight system, and the display consistency is ensured by a fixed current test.

In terms of interface configuration, the CN1 interface integrates HMI signal pins, including HPD, HMI 5V, GND, Clock±, SDA/SCL and other signal lines, and supports standard HMI communication protocols; the CN2 interface adopts the vertical plug-in model JL4-6ZJB, which is dedicated to power and backlight control, including +12V power supply, BLPWM backlight frequency modulation and BLEN backlight enable functions. It is worth noting that the CN1 interface is adjusted to 180-degree rotation installation in the latest version, and the line sequence and definition remain unchanged to meet the wiring requirements of different scenarios.

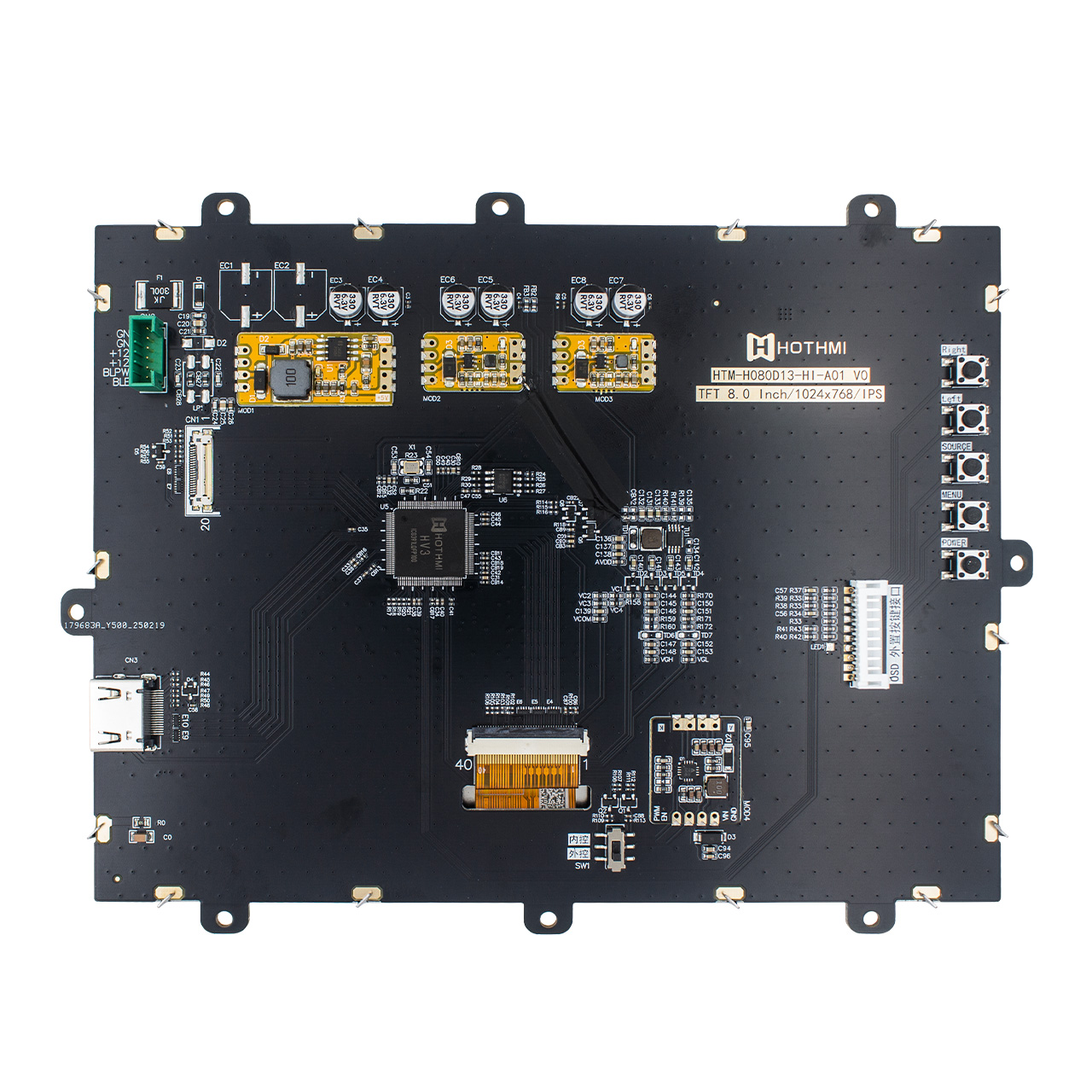

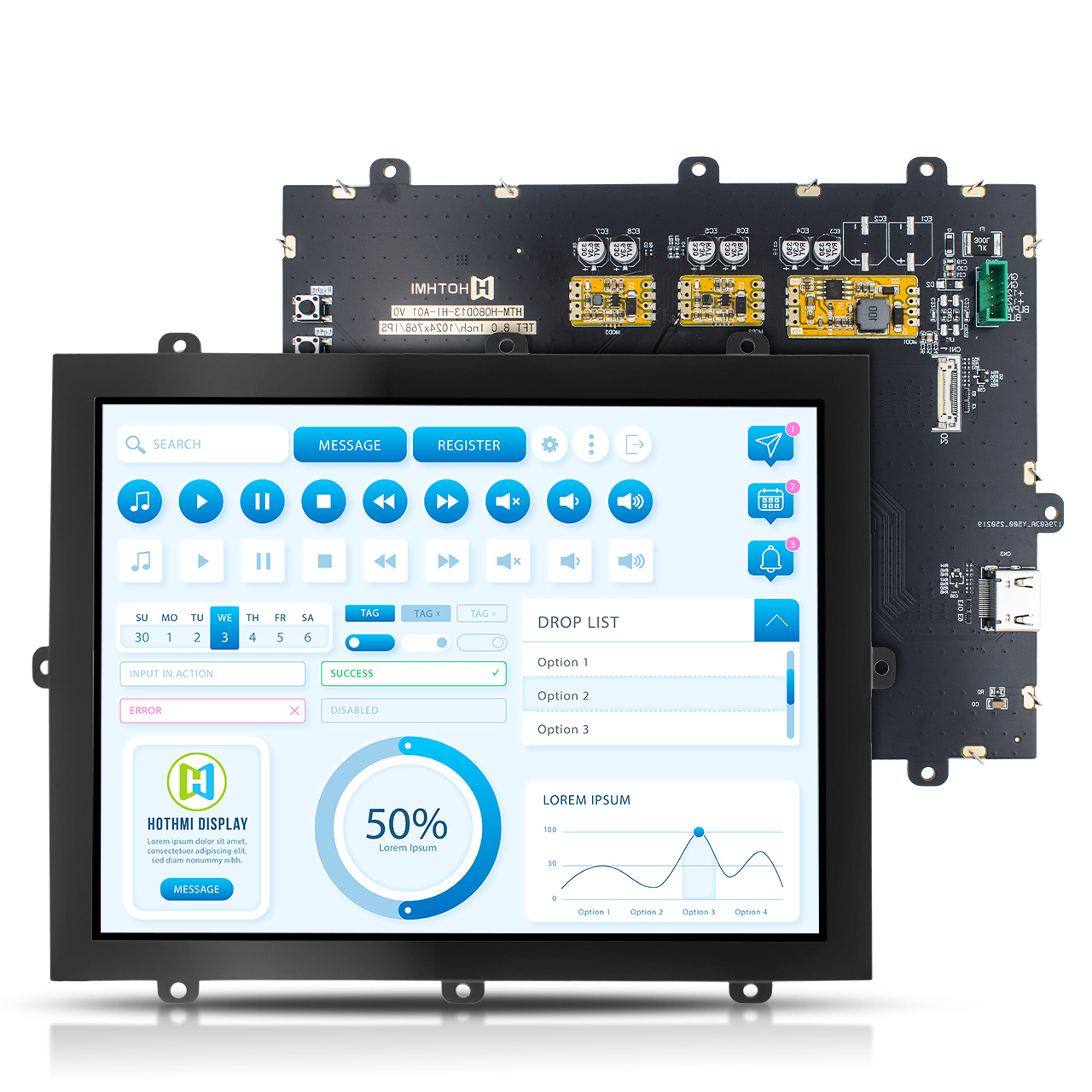

The physical structure is precisely designed, with a main body size of 197.00±0.3mm (PCB length), 184.00±0.3mm (TK+ lens assembly), and the overall thickness is controlled within 23.40mm. The back of the module is compactly laid out, and key components such as the driver chip LV0510L-120G0QH and the connector are strictly controlled to tolerance (±0.3mm) to ensure assembly reliability. In addition, the product provides multi-language operation prompts, including key function labels such as power, menu, and signal source.

To extend the service life, 8.0" TFT LCD Display Modules is recommended to avoid displaying static patterns for a long time to prevent image retention. If a fixed screen display is required, the content should be refreshed every 2 minutes or switched to a dynamic image. The manufacturer strongly recommends using a black background or dynamic screen saver solution to optimize the display effect and protect the panel. This 8.0" TFT LCD Display Modules is suitable for industrial control, medical equipment, commercial display and other fields, taking into account high definition and environmental adaptability to meet the needs of diverse application scenarios.
