Product type：Graphic LCD Module
Show contents：128x64
Outline size(mm) ：75X52.7X8.5
Size of View Window(mm)：60X32.6
Display size(mm) ：55.01X27.49
Point spacing(mm)：0.43x0.43
Product application：Instruments
Visual angle：6H
Backlight type or brightness：YG
Connection PIN Number：FFC-20PIN
Interface mode：MCU
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：5.0V
Driver chip model：SBN0064G

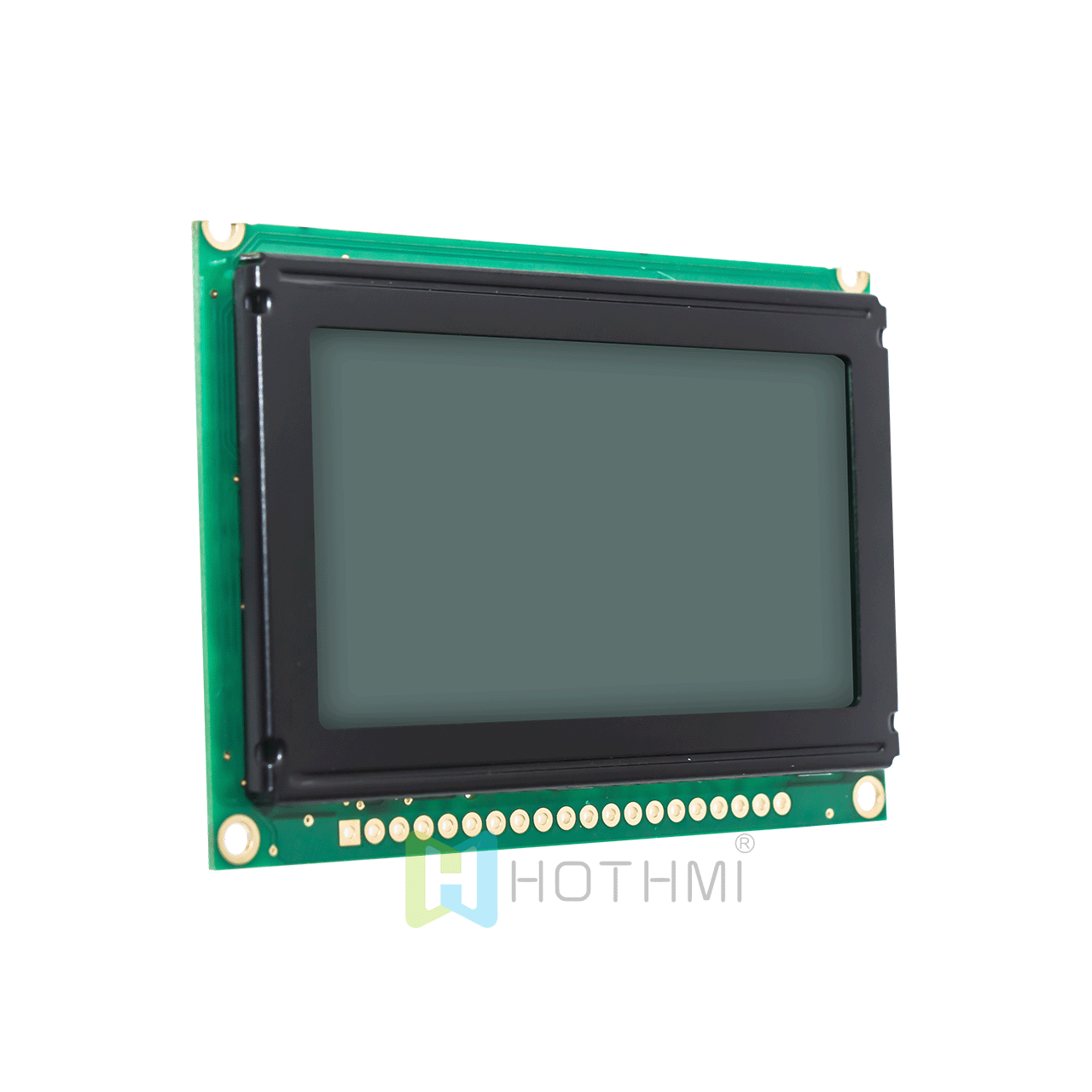

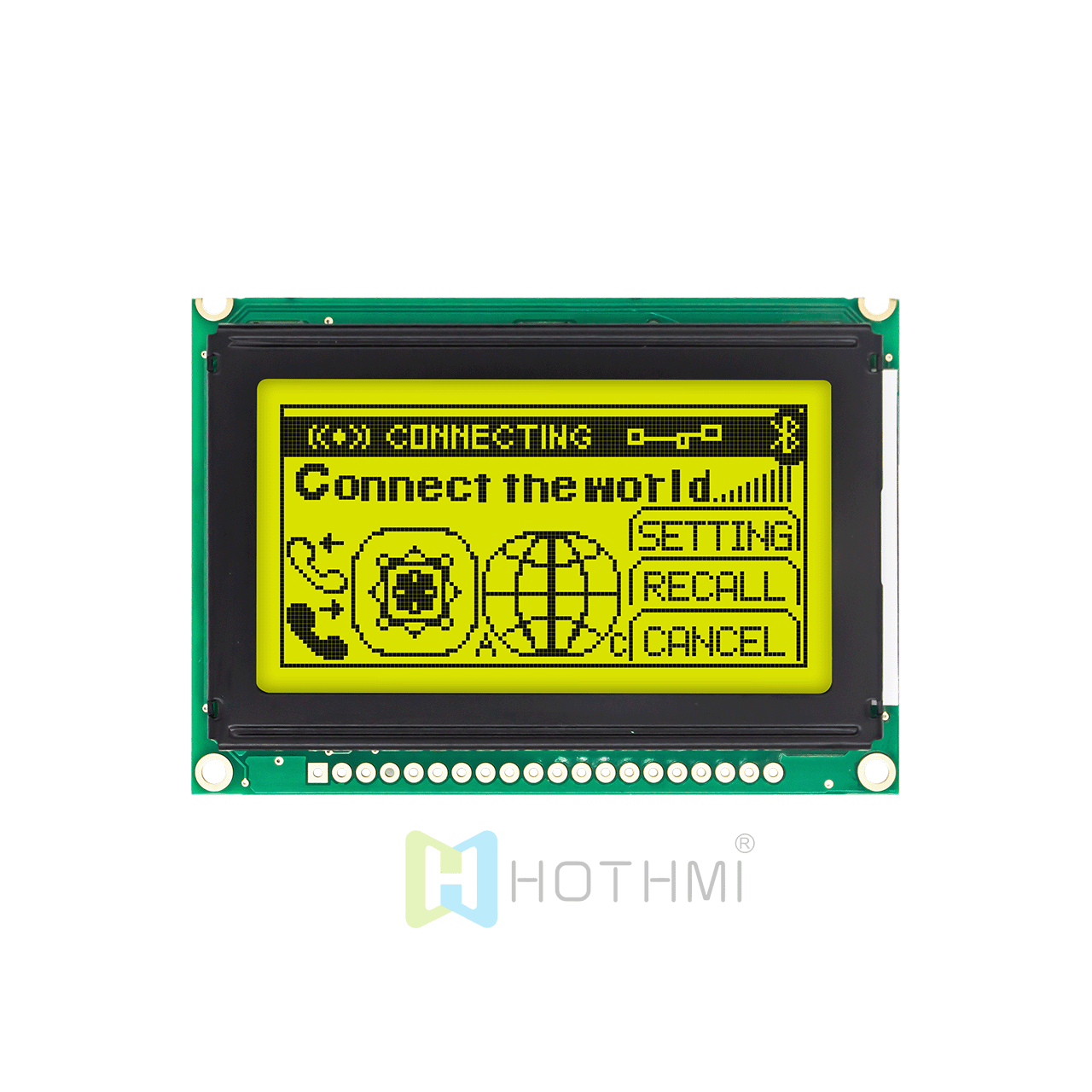

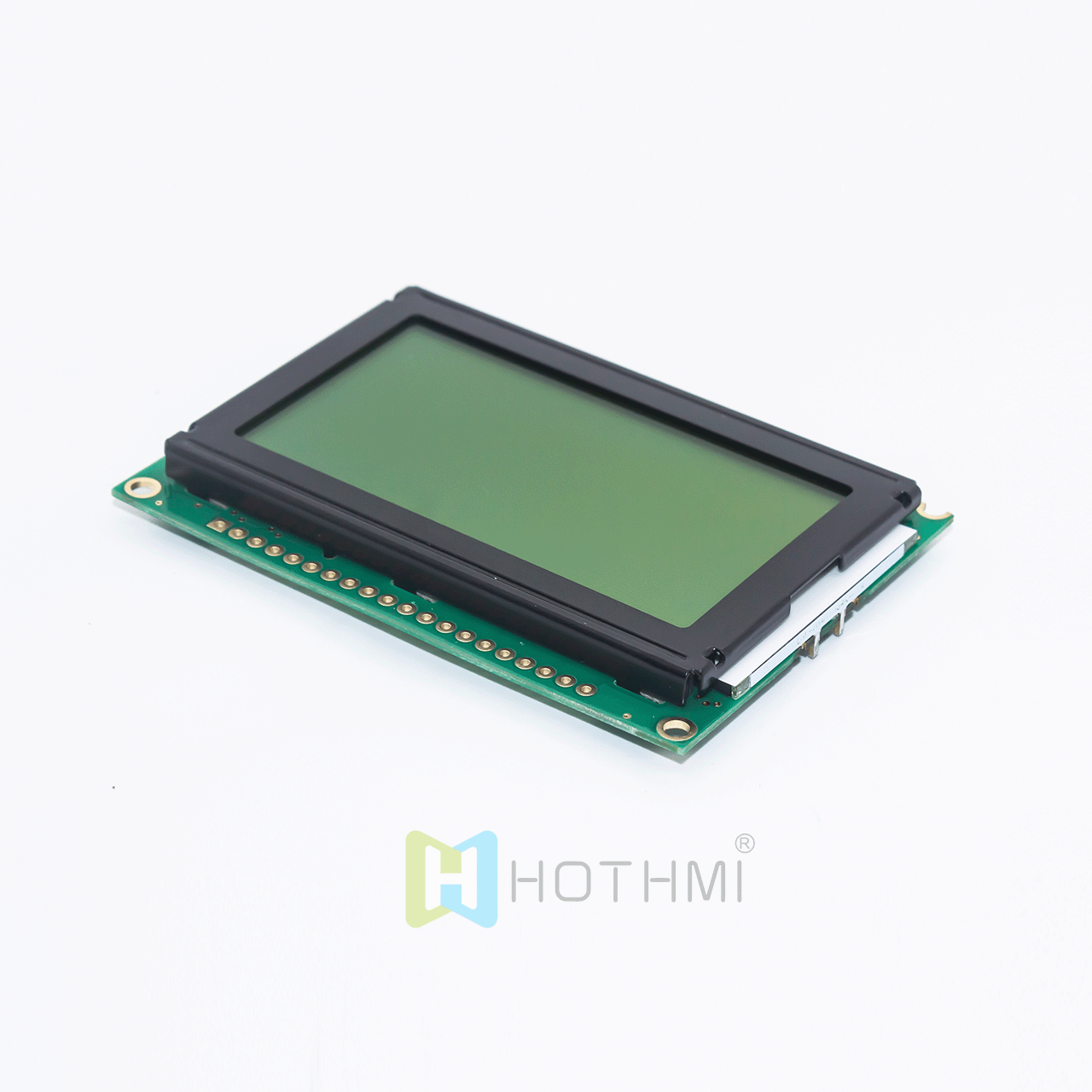

2.7 inch 128x64 LCD Graphic Liquid Crystal Dot Matrix Module This graphic LCD display module displays dark gray pixels on a yellow-green background. This transflective LCD display is designed to provide optimal visibility in a variety of lighting conditions in many different environments. In bright sunlight, the display uses its reflective layer to reflect ambient light back to the viewer, making the screen easy to read. In darker environments, the LCD has a strong built-in backlight to provide high contrast and display clear graphics to the viewer. This advanced display technology ensures that the display is always easy to read regardless of the lighting conditions.
This graphic LCD display module is fully compatible with Arduino and can be seamlessly connected with other electronic systems for a variety of applications. This product is designed to withstand harsh operating conditions and operates abnormally when used in a temperature range of -20 to 70 degrees Celsius. The best viewing angle of this LCD is 6:00, it works at 5V supply voltage and is RoHS compliant.
